Measurement E216M233
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π+))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.95 — 2.0 GeV | |

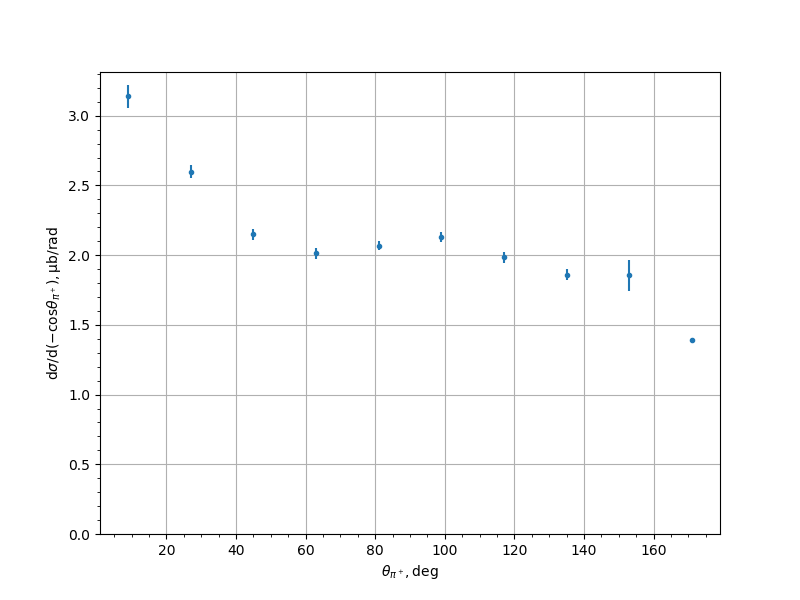

| θ(π+), [deg] | dσ/d(−cos(θ(π+))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 3.13781 | 0.0834971 |
| 27.0 | 2.59869 | 0.0446291 |
| 45.0 | 2.14847 | 0.0390178 |
| 63.0 | 2.01274 | 0.0394981 |
| 81.0 | 2.06898 | 0.0355152 |
| 99.0 | 2.13117 | 0.036456 |
| 117.0 | 1.98487 | 0.040405 |
| 135.0 | 1.85809 | 0.0396001 |
| 153.0 | 1.8564 | 0.110303 |
| 171.0 | 1.39141 | 0.0144674 |
