Measurement E216M745
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 5.0 — 6.0 GeV2 | |
| W: | 2.0 — 2.05 GeV | |

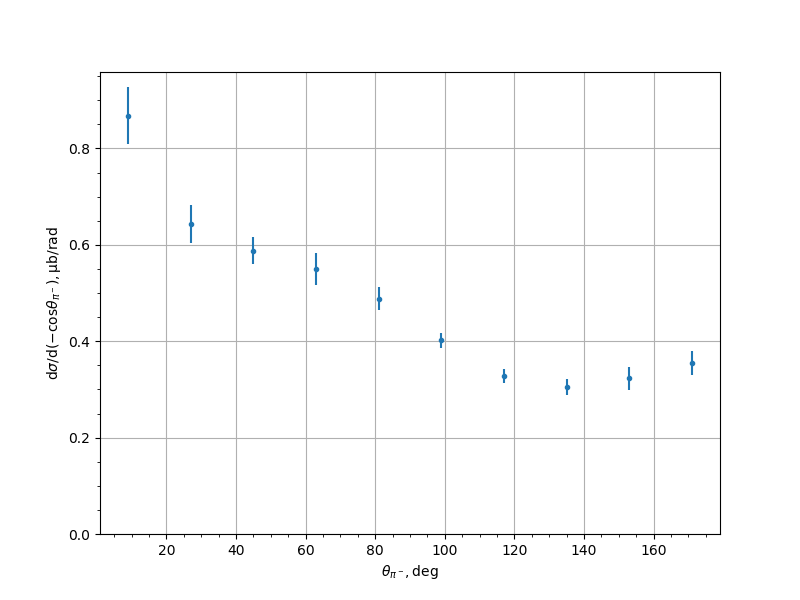

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.868054 | 0.0585786 |
| 27.0 | 0.642983 | 0.0390947 |
| 45.0 | 0.58733 | 0.0278667 |
| 63.0 | 0.549709 | 0.0339737 |
| 81.0 | 0.487908 | 0.0237963 |
| 99.0 | 0.402091 | 0.0155841 |
| 117.0 | 0.328263 | 0.0145325 |
| 135.0 | 0.305091 | 0.016223 |
| 153.0 | 0.323322 | 0.0236752 |
| 171.0 | 0.355578 | 0.0249197 |
