Measurement E216M746
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π+))) | |
| Q2: | 5.0 — 6.0 GeV2 | |
| W: | 2.0 — 2.05 GeV | |

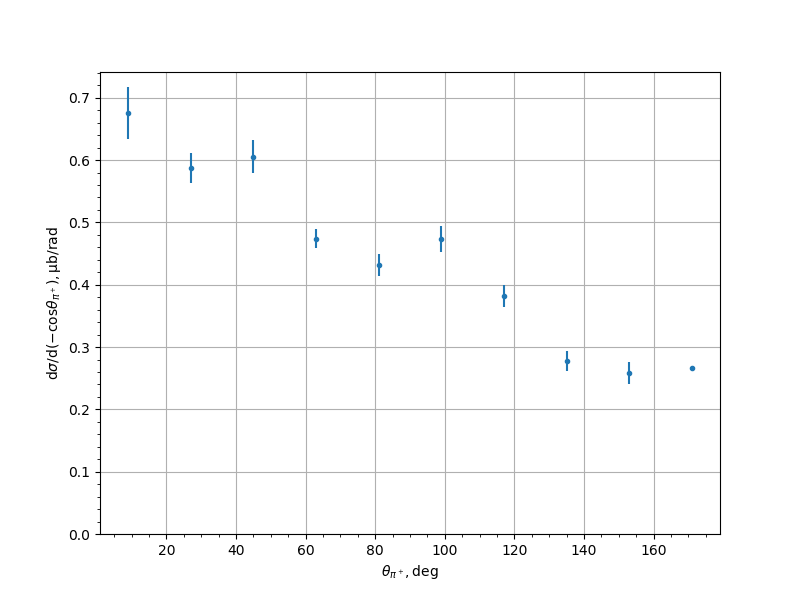

| θ(π+), [deg] | dσ/d(−cos(θ(π+))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.675613 | 0.0418967 |
| 27.0 | 0.586685 | 0.0240776 |
| 45.0 | 0.605506 | 0.0259577 |
| 63.0 | 0.474139 | 0.0152591 |
| 81.0 | 0.432126 | 0.0178878 |
| 99.0 | 0.4736 | 0.0206116 |
| 117.0 | 0.381662 | 0.0176456 |
| 135.0 | 0.277089 | 0.0159086 |
| 153.0 | 0.257997 | 0.017937 |
| 171.0 | 0.266274 | 0.00050812 |
