Measurement E9M123

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.6 — 0.7 GeV2
W: 1.4 GeV
ε: 0.578
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

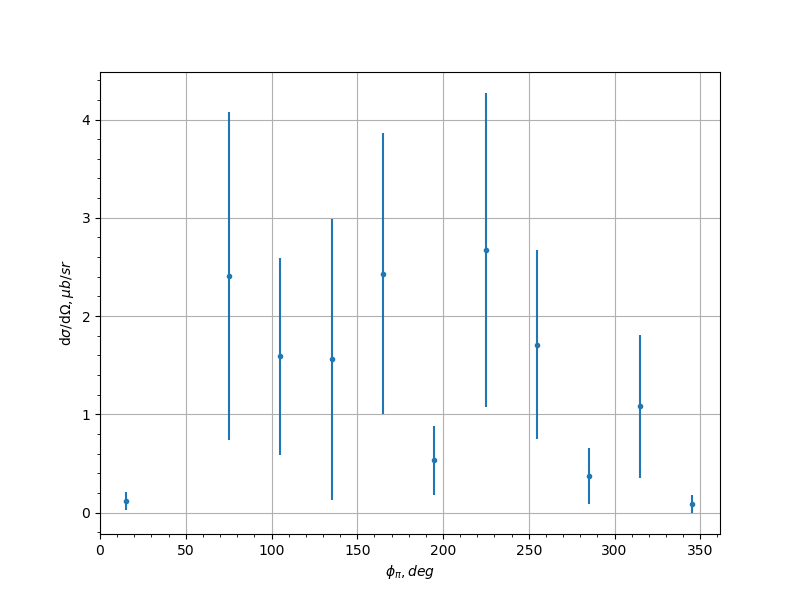

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.117 0.0926 0.093
-0.9 75.0 2.41 1.67 1.1273
-0.9 105.0 1.59 1.0 0.4499
-0.9 135.0 1.56 1.43 0.6694
-0.9 165.0 2.43 1.43 1.692
-0.9 195.0 0.53 0.352 0.1712
-0.9 225.0 2.67 1.6 1.1199
-0.9 255.0 1.71 0.958 0.3669
-0.9 285.0 0.376 0.285 0.2835
-0.9 315.0 1.08 0.726 0.3976
-0.9 345.0 0.0871 0.0917 0.0939
-0.7 15.0 0.808 0.309 0.156
-0.7 45.0 2.62 1.22 0.9905
-0.7 75.0 3.54 1.29 0.6268
-0.7 105.0 2.86 1.4 0.3475
-0.7 135.0 1.15 0.771 0.4477
-0.7 165.0 2.5 1.24 1.1208
-0.7 195.0 1.01 0.664 0.5538
-0.7 225.0 1.03 0.66 1.1062
-0.7 255.0 1.49 0.684 0.285
-0.7 285.0 3.14 1.42 1.172
-0.7 315.0 1.14 0.461 0.0853
-0.7 345.0 1.42 0.501 0.1931
-0.5 15.0 1.92 0.6 0.4429
-0.5 45.0 2.61 0.837 0.2987
-0.5 75.0 2.41 0.785 0.4146
-0.5 105.0 2.44 0.91 0.6274
-0.5 135.0 1.39 1.05 0.4176
-0.5 195.0 2.06 2.31 1.1471
-0.5 225.0 1.9 1.04 0.2904
-0.5 255.0 3.23 1.32 0.5746
-0.5 285.0 0.89 0.465 0.0856
-0.5 315.0 1.32 0.372 1.3691
-0.5 345.0 1.26 0.448 0.2584
-0.3 15.0 0.754 0.327 0.1714
-0.3 45.0 3.24 0.978 0.4259
-0.3 75.0 4.23 1.33 0.6349
-0.3 105.0 2.56 0.706 0.4852
-0.3 135.0 2.15 0.7 0.5599
-0.3 225.0 1.2 0.575 0.524
-0.3 255.0 3.27 1.03 0.9688
-0.3 285.0 1.32 0.571 0.4081
-0.3 315.0 3.08 0.971 0.4064
-0.3 345.0 1.63 0.579 0.1622
-0.1 15.0 1.06 0.466 0.06
-0.1 45.0 3.45 1.06 0.524
-0.1 75.0 2.99 0.995 0.3015
-0.1 105.0 3.94 1.16 0.9909
-0.1 135.0 2.04 0.675 0.3372
-0.1 195.0 6.32 4.88 1.7522
-0.1 225.0 1.6 0.597 0.3061
-0.1 255.0 2.77 0.703 0.5725
-0.1 285.0 2.15 0.652 0.2682
-0.1 315.0 4.86 1.33 0.8139
-0.1 345.0 0.967 0.372 0.2268
0.1 15.0 1.22 0.501 0.2243
0.1 45.0 2.38 0.742 0.1185
0.1 75.0 2.62 0.719 0.4552
0.1 105.0 2.66 0.725 0.2542
0.1 135.0 1.76 0.602 0.4387
0.1 195.0 8.21 11.6 5.2935
0.1 225.0 1.74 0.571 0.2122
0.1 255.0 2.78 0.686 0.2877
0.1 285.0 4.38 1.35 0.8614
0.1 315.0 2.97 0.853 0.2298
0.1 345.0 1.52 0.497 0.4314
0.3 15.0 2.61 0.718 0.2937
0.3 45.0 1.63 0.489 0.0412
0.3 75.0 3.39 1.11 0.4704
0.3 105.0 2.99 0.806 0.5101
0.3 135.0 1.25 0.552 0.2476
0.3 225.0 3.78 1.37 0.6163
0.3 255.0 2.17 0.633 0.1684
0.3 285.0 1.31 0.451 0.1263
0.3 315.0 2.52 0.69 0.2021
0.3 345.0 2.06 0.678 0.2602
0.5 15.0 1.55 0.443 0.4263
0.5 45.0 2.05 0.587 0.0856
0.5 75.0 2.67 0.867 0.3895
0.5 105.0 2.65 0.778 0.2051
0.5 135.0 0.946 0.6 0.0979
0.5 225.0 3.0 1.42 0.6935
0.5 255.0 2.12 0.687 0.244
0.5 285.0 1.44 0.481 0.7964
0.5 315.0 1.39 0.502 0.2833
0.5 345.0 2.58 0.699 0.3
0.7 15.0 1.84 0.644 0.2498
0.7 45.0 1.33 0.51 0.182
0.7 75.0 1.33 0.495 0.5209
0.7 105.0 1.95 0.881 0.7902
0.7 135.0 4.52 3.5 1.898
0.7 225.0 3.89 1.75 1.0007
0.7 255.0 1.11 0.533 0.4549
0.7 285.0 1.8 0.706 0.3739
0.7 315.0 1.11 0.481 0.2012
0.7 345.0 1.11 0.359 0.4464
0.9 15.0 2.62 1.07 0.7735
0.9 45.0 3.6 1.65 1.1563
0.9 75.0 1.17 0.625 0.5332
0.9 105.0 1.12 0.707 0.3992
0.9 135.0 0.986 0.58 0.669
0.9 225.0 0.577 0.425 0.3776
0.9 255.0 0.77 0.426 0.4152
0.9 285.0 2.37 1.33 0.8337
0.9 315.0 1.24 0.901 0.3281
0.9 345.0 0.761 0.293 0.5354
