Measurement E9M124

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.6 — 0.7 GeV2
W: 1.42 GeV
ε: 0.557
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

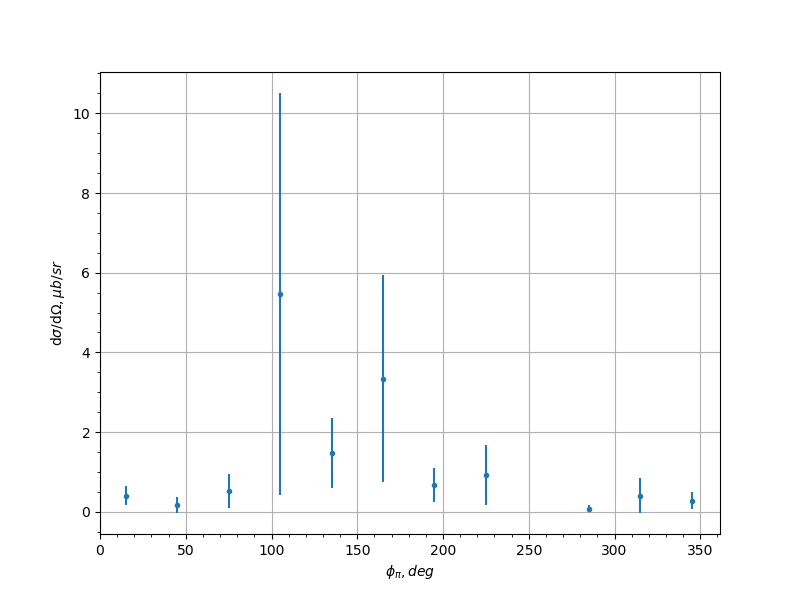

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.405 0.234 0.1326
-0.9 45.0 0.175 0.196 0.126
-0.9 75.0 0.525 0.421 0.3145
-0.9 105.0 5.46 5.05 2.8889
-0.9 135.0 1.47 0.876 0.2682
-0.9 165.0 3.34 2.6 1.4733
-0.9 195.0 0.676 0.427 0.1268
-0.9 225.0 0.915 0.754 0.229
-0.9 285.0 0.0777 0.0819 0.1076
-0.9 315.0 0.404 0.434 0.1503
-0.9 345.0 0.28 0.222 0.1006
-0.7 15.0 0.551 0.256 0.1894
-0.7 45.0 1.3 0.513 0.1026
-0.7 75.0 1.16 0.63 0.182
-0.7 105.0 1.64 0.753 0.4342
-0.7 135.0 1.32 1.06 0.4136
-0.7 165.0 3.7 3.73 2.007
-0.7 195.0 1.1 1.21 0.5837
-0.7 225.0 23.4 26.3 12.7341
-0.7 255.0 1.18 0.659 0.2779
-0.7 285.0 1.47 0.738 0.2667
-0.7 315.0 0.698 0.436 0.2346
-0.7 345.0 0.646 0.354 0.1878
-0.5 15.0 0.65 0.29 0.115
-0.5 45.0 1.94 0.706 0.3478
-0.5 75.0 3.07 1.24 0.7938
-0.5 105.0 0.952 0.502 0.3955
-0.5 135.0 4.23 1.64 0.8539
-0.5 165.0 0.969 1.09 3.2993
-0.5 225.0 3.61 1.36 1.5012
-0.5 255.0 2.66 1.12 0.6098
-0.5 285.0 1.4 0.553 0.2587
-0.5 315.0 0.136 0.138 0.1993
-0.5 345.0 1.31 0.469 0.0779
-0.3 15.0 1.0 0.536 0.3242
-0.3 45.0 0.588 0.279 0.2142
-0.3 75.0 2.69 0.763 0.212
-0.3 105.0 3.49 1.05 0.5191
-0.3 135.0 5.63 1.76 1.4888
-0.3 195.0 1.54 1.3 5.6463
-0.3 225.0 2.85 1.03 0.5177
-0.3 255.0 0.816 0.348 0.1753
-0.3 285.0 4.24 1.34 0.8169
-0.3 315.0 2.39 0.867 0.4887
-0.3 345.0 2.83 0.919 1.6422
-0.1 15.0 2.97 0.996 0.7292
-0.1 45.0 1.31 0.502 0.1652
-0.1 75.0 2.52 0.747 0.1294
-0.1 105.0 2.8 0.771 0.2726
-0.1 135.0 3.88 1.06 0.3258
-0.1 165.0 1.45 1.59 3.0878
-0.1 225.0 3.6 1.22 0.8382
-0.1 255.0 3.97 1.03 0.974
-0.1 285.0 5.37 1.52 1.2868
-0.1 315.0 1.4 0.536 0.2486
-0.1 345.0 0.617 0.459 0.2483
0.1 15.0 1.77 0.553 0.7575
0.1 45.0 1.01 0.413 0.1855
0.1 75.0 2.31 0.729 0.1151
0.1 105.0 3.61 0.803 0.0829
0.1 135.0 1.47 0.607 0.5214
0.1 225.0 3.42 1.19 1.3421
0.1 255.0 3.51 0.792 1.6796
0.1 285.0 2.15 0.842 0.1897
0.1 315.0 3.15 1.03 0.7886
0.1 345.0 2.16 0.748 0.1304
0.3 15.0 1.71 0.615 0.2456
0.3 45.0 2.83 0.821 0.613
0.3 75.0 1.43 0.582 0.1116
0.3 105.0 2.04 0.643 0.2708
0.3 135.0 4.35 1.6 0.5887
0.3 225.0 4.62 1.87 1.353
0.3 255.0 1.93 0.598 0.3346
0.3 285.0 3.21 1.04 0.5296
0.3 315.0 1.22 0.45 0.2496
0.3 345.0 3.46 1.15 0.9882
0.5 15.0 0.619 0.27 0.1473
0.5 45.0 2.12 0.759 0.1629
0.5 75.0 2.46 0.831 0.5034
0.5 105.0 1.58 0.557 0.2629
0.5 135.0 1.73 1.2 0.4479
0.5 225.0 2.62 1.51 0.5746
0.5 255.0 3.09 0.895 0.5414
0.5 285.0 2.17 0.689 0.1727
0.5 315.0 1.08 0.37 0.1639
0.5 345.0 1.48 0.511 0.1188
0.7 15.0 0.811 0.322 0.0792
0.7 45.0 1.17 0.373 0.2016
0.7 75.0 1.19 0.528 0.1616
0.7 105.0 1.37 0.522 0.1273
0.7 135.0 0.65 0.501 0.1478
0.7 225.0 3.7 2.08 1.0972
0.7 255.0 1.14 0.466 0.2959
0.7 285.0 0.589 0.247 0.6264
0.7 315.0 0.821 0.417 0.1072
0.7 345.0 2.21 0.795 0.1894
0.9 15.0 8.88 5.44 5.5987
0.9 45.0 1.56 0.791 0.4013
0.9 75.0 1.74 0.879 0.487
0.9 105.0 0.771 0.467 0.2234
0.9 135.0 0.296 0.311 0.3479
0.9 225.0 0.829 0.488 0.7184
0.9 255.0 0.119 0.124 0.0862
0.9 285.0 0.727 0.472 0.3385
0.9 315.0 1.06 0.651 0.2121
0.9 345.0 1.01 0.54 0.1476
