Measurement E9M125

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.6 — 0.7 GeV2
W: 1.44 GeV
ε: 0.535
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

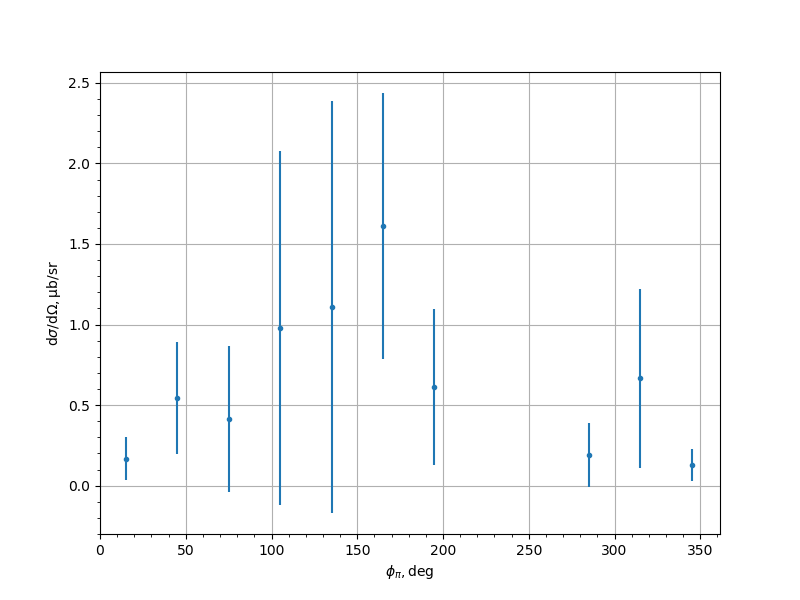

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.167 0.132 0.1428
-0.9 45.0 0.542 0.348 0.2643
-0.9 75.0 0.413 0.451 0.2164
-0.9 105.0 0.978 1.1 0.5864
-0.9 135.0 1.11 1.28 0.5742
-0.9 165.0 1.61 0.827 0.3728
-0.9 195.0 0.61 0.485 0.5851
-0.9 285.0 0.19 0.2 0.1879
-0.9 315.0 0.667 0.555 0.1875
-0.9 345.0 0.127 0.0997 0.0386
-0.7 15.0 1.02 0.478 0.1609
-0.7 45.0 0.911 0.359 1.3254
-0.7 75.0 0.686 0.368 0.1441
-0.7 105.0 1.39 0.6 0.2409
-0.7 135.0 2.59 1.69 0.7675
-0.7 165.0 0.68 0.739 1.3362
-0.7 225.0 10.9 9.5 5.3023
-0.7 255.0 1.47 0.815 0.2573
-0.7 285.0 4.29 2.01 1.3894
-0.7 315.0 0.639 0.4 0.1332
-0.7 345.0 0.622 0.325 0.3185
-0.5 15.0 1.43 0.505 0.0992
-0.5 45.0 0.886 0.385 0.1943
-0.5 75.0 3.87 1.31 0.6548
-0.5 105.0 1.04 0.421 0.2425
-0.5 135.0 2.68 1.3 1.7048
-0.5 165.0 13.6 16.7 8.7396
-0.5 225.0 1.69 0.711 0.4036
-0.5 255.0 2.93 1.11 0.4377
-0.5 285.0 2.2 0.762 0.5715
-0.5 315.0 1.48 0.524 0.1426
-0.5 345.0 0.977 0.437 0.3093
-0.3 15.0 1.6 0.581 1.1743
-0.3 45.0 2.28 0.854 0.3965
-0.3 75.0 1.8 0.734 0.336
-0.3 105.0 3.55 0.864 0.4952
-0.3 135.0 3.79 1.33 0.6636
-0.3 225.0 0.931 0.44 0.2194
-0.3 255.0 4.43 1.25 0.3334
-0.3 285.0 4.19 1.38 0.6007
-0.3 315.0 3.14 1.15 0.5233
-0.3 345.0 0.946 0.452 0.5596
-0.1 15.0 1.27 0.609 0.2973
-0.1 45.0 2.26 0.681 0.0618
-0.1 75.0 3.92 1.14 0.3991
-0.1 105.0 4.15 0.993 0.7271
-0.1 135.0 3.15 1.39 0.5424
-0.1 225.0 1.55 0.6 0.1679
-0.1 255.0 3.71 0.918 0.755
-0.1 285.0 2.01 0.532 0.31
-0.1 315.0 2.55 0.832 0.37
-0.1 345.0 0.729 0.387 0.0669
0.1 15.0 1.81 0.668 0.2174
0.1 45.0 0.938 0.403 0.0941
0.1 75.0 3.44 0.923 0.2565
0.1 105.0 2.2 0.596 0.4215
0.1 135.0 5.99 2.4 1.181
0.1 195.0 2.69 3.02 1.9977
0.1 225.0 2.4 0.972 0.22
0.1 255.0 2.75 0.616 0.8216
0.1 285.0 2.05 0.503 0.6666
0.1 315.0 1.26 0.407 0.2393
0.1 345.0 1.02 0.5 0.1351
0.3 15.0 0.771 0.282 0.1136
0.3 45.0 1.05 0.383 0.2108
0.3 75.0 1.68 0.569 0.0817
0.3 105.0 2.29 0.592 0.5382
0.3 135.0 3.11 1.46 0.8504
0.3 165.0 2.04 2.37 1.1487
0.3 195.0 2.41 2.03 5.0573
0.3 225.0 3.46 1.51 0.3413
0.3 255.0 1.96 0.536 0.0669
0.3 285.0 2.98 0.926 0.4528
0.3 315.0 1.69 0.524 0.154
0.3 345.0 4.2 1.29 0.8064
0.5 15.0 2.02 0.78 0.5159
0.5 45.0 1.18 0.368 0.2378
0.5 75.0 2.43 0.742 0.3689
0.5 105.0 2.05 0.681 0.3517
0.5 135.0 1.02 0.64 0.2847
0.5 165.0 2.03 1.62 2.6427
0.5 195.0 1.04 1.21 2.483
0.5 225.0 3.14 1.68 0.9167
0.5 255.0 1.38 0.457 0.5148
0.5 285.0 1.38 0.452 0.6294
0.5 315.0 2.12 0.735 0.4946
0.5 345.0 0.765 0.29 0.2804
0.7 15.0 0.611 0.282 0.0437
0.7 45.0 1.62 0.591 0.144
0.7 75.0 0.476 0.254 0.1535
0.7 105.0 1.12 0.431 0.2505
0.7 135.0 0.907 0.58 0.1815
0.7 165.0 0.556 0.597 0.5014
0.7 195.0 3.16 2.9 1.266
0.7 225.0 2.88 1.45 0.5069
0.7 255.0 1.24 0.482 0.2443
0.7 285.0 0.903 0.38 0.361
0.7 315.0 1.35 0.467 0.2979
0.7 345.0 2.97 1.11 0.4574
0.9 15.0 0.968 0.438 2.0584
0.9 45.0 1.07 0.583 0.357
0.9 75.0 0.72 0.289 0.3375
0.9 105.0 1.25 0.63 0.3049
0.9 135.0 0.256 0.273 0.173
0.9 225.0 1.28 1.12 0.8975
0.9 255.0 0.743 0.499 0.2445
0.9 285.0 0.582 0.449 0.2827
0.9 315.0 0.96 0.521 0.1304
0.9 345.0 1.12 0.504 0.287
