Measurement E9M126

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.6 — 0.7 GeV2
W: 1.46 GeV
ε: 0.511
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

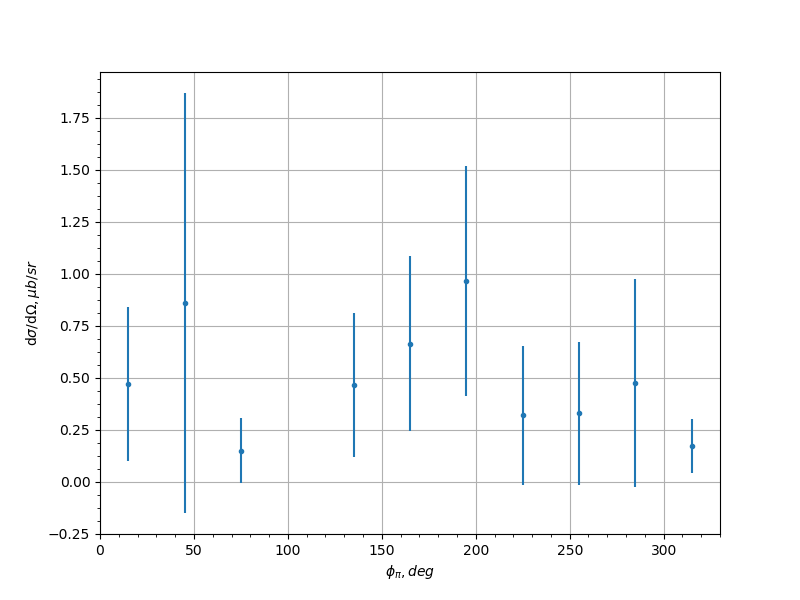

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.468 0.37 0.4717
-0.9 45.0 0.859 1.01 0.5653
-0.9 75.0 0.148 0.157 0.0788
-0.9 135.0 0.464 0.346 0.2335
-0.9 165.0 0.664 0.422 0.6825
-0.9 195.0 0.964 0.552 0.5505
-0.9 225.0 0.318 0.335 0.2682
-0.9 255.0 0.329 0.343 0.2256
-0.9 285.0 0.475 0.5 0.3581
-0.9 315.0 0.171 0.13 0.312
-0.7 15.0 0.596 0.331 0.097
-0.7 45.0 0.776 0.481 0.2251
-0.7 75.0 0.869 0.549 0.1532
-0.7 105.0 2.31 1.12 0.6438
-0.7 135.0 4.7 3.34 1.7428
-0.7 195.0 1.1 1.24 0.7826
-0.7 225.0 0.525 0.393 0.2772
-0.7 255.0 0.905 0.484 0.1986
-0.7 285.0 0.929 0.394 0.24
-0.7 315.0 1.08 0.591 0.1889
-0.7 345.0 0.334 0.203 0.0418
-0.5 15.0 2.27 0.708 0.1991
-0.5 45.0 1.96 0.666 0.2883
-0.5 75.0 3.73 1.32 0.9822
-0.5 105.0 2.78 0.851 0.195
-0.5 135.0 2.25 0.778 0.6149
-0.5 165.0 4.01 3.68 2.065
-0.5 225.0 2.57 1.03 0.358
-0.5 255.0 2.0 0.672 0.2329
-0.5 285.0 1.77 0.659 0.2331
-0.5 315.0 1.55 0.594 0.2554
-0.5 345.0 1.6 0.678 0.36
-0.3 15.0 1.97 0.933 0.5218
-0.3 45.0 0.907 0.428 0.2091
-0.3 75.0 1.72 0.565 0.2612
-0.3 105.0 2.5 0.678 0.5103
-0.3 135.0 2.06 0.851 0.2402
-0.3 225.0 4.51 1.24 0.458
-0.3 255.0 4.01 1.01 0.2921
-0.3 285.0 5.24 1.55 1.231
-0.3 315.0 3.7 1.15 1.1333
-0.3 345.0 1.98 0.997 0.6793
-0.1 15.0 2.16 0.667 0.4045
-0.1 45.0 2.54 0.735 0.5316
-0.1 75.0 2.99 0.961 0.4782
-0.1 105.0 4.39 1.06 0.673
-0.1 135.0 3.56 1.13 1.43
-0.1 225.0 1.93 0.637 2.0432
-0.1 255.0 3.49 0.847 0.1994
-0.1 285.0 1.48 0.589 0.2786
-0.1 315.0 2.42 0.7 0.3581
-0.1 345.0 0.395 0.235 0.243
0.1 15.0 1.52 0.63 0.195
0.1 45.0 2.65 0.877 0.3354
0.1 75.0 3.87 1.1 0.8176
0.1 105.0 3.68 0.936 0.6962
0.1 135.0 1.09 0.658 0.0704
0.1 165.0 2.83 2.32 1.4582
0.1 195.0 1.09 1.15 0.3846
0.1 225.0 1.95 0.877 0.7295
0.1 255.0 5.02 1.33 1.2818
0.1 285.0 1.5 0.513 0.2167
0.1 315.0 1.92 0.61 0.0354
0.1 345.0 1.0 0.389 0.4937
0.3 15.0 1.66 0.572 0.2197
0.3 45.0 2.59 0.817 0.4962
0.3 75.0 2.01 0.583 0.0825
0.3 105.0 2.7 0.768 0.4955
0.3 135.0 2.14 0.863 0.3347
0.3 165.0 1.35 1.04 0.4146
0.3 195.0 1.38 0.92 0.4836
0.3 225.0 6.09 2.93 2.1979
0.3 255.0 2.39 0.597 0.4463
0.3 285.0 4.04 1.18 1.0911
0.3 315.0 1.83 0.655 0.0377
0.3 345.0 1.39 0.633 0.2401
0.5 15.0 2.19 0.778 0.2287
0.5 45.0 1.1 0.364 0.503
0.5 75.0 2.35 0.773 0.2093
0.5 105.0 1.34 0.496 0.0823
0.5 135.0 1.38 0.677 2.3717
0.5 165.0 1.23 0.695 0.8646
0.5 225.0 2.18 0.893 0.9277
0.5 255.0 2.7 0.739 0.4056
0.5 285.0 2.61 0.72 0.2255
0.5 315.0 2.35 0.726 0.2483
0.5 345.0 1.92 0.585 1.1901
0.7 15.0 1.67 0.585 0.2576
0.7 45.0 1.78 0.811 0.3224
0.7 75.0 2.43 0.779 0.5654
0.7 105.0 2.62 0.909 0.3701
0.7 135.0 1.07 0.546 0.3121
0.7 165.0 3.09 2.53 2.1956
0.7 195.0 1.27 1.03 3.6838
0.7 225.0 0.943 0.521 0.5882
0.7 255.0 1.3 0.545 0.1256
0.7 285.0 1.06 0.368 0.3837
0.7 315.0 0.922 0.301 0.5219
0.7 345.0 1.62 0.56 0.6805
0.9 15.0 6.07 3.49 3.0412
0.9 45.0 0.932 0.519 0.6731
0.9 75.0 0.555 0.305 0.1952
0.9 105.0 1.13 0.661 0.5689
0.9 135.0 0.474 0.505 0.3504
0.9 225.0 0.423 0.45 0.1711
0.9 255.0 2.23 0.917 0.6094
0.9 285.0 1.45 0.767 0.4747
0.9 315.0 3.25 1.41 0.7884
0.9 345.0 1.4 0.712 0.8064
