Measurement E9M127

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.6 — 0.7 GeV2
W: 1.48 GeV
ε: 0.487
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

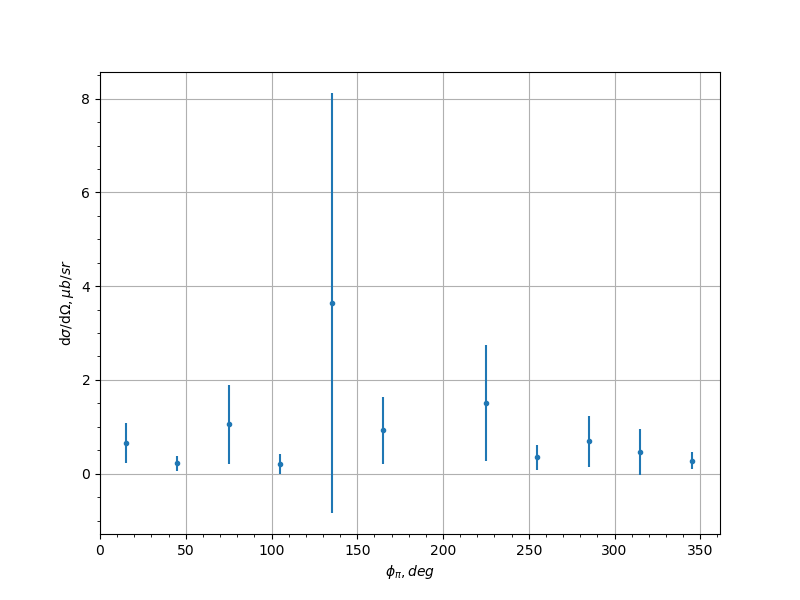

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.648 0.425 0.2239
-0.9 45.0 0.217 0.165 0.0221
-0.9 75.0 1.05 0.842 0.4983
-0.9 105.0 0.209 0.217 0.1912
-0.9 135.0 3.64 4.48 2.259
-0.9 165.0 0.921 0.718 4.0631
-0.9 225.0 1.51 1.24 0.6498
-0.9 255.0 0.345 0.264 0.1624
-0.9 285.0 0.686 0.537 0.3806
-0.9 315.0 0.456 0.489 0.1159
-0.9 345.0 0.278 0.179 0.101
-0.7 15.0 1.43 0.649 0.0367
-0.7 45.0 1.58 0.791 0.5459
-0.7 75.0 1.66 0.708 0.1366
-0.7 105.0 1.29 0.696 0.4304
-0.7 135.0 3.16 1.71 2.6853
-0.7 225.0 0.481 0.498 0.0709
-0.7 255.0 1.02 0.626 0.2559
-0.7 285.0 2.16 1.16 0.6802
-0.7 345.0 0.568 0.252 0.2776
-0.5 15.0 1.18 0.486 0.4242
-0.5 45.0 0.443 0.265 0.2302
-0.5 75.0 3.11 1.02 0.2502
-0.5 105.0 1.5 0.52 0.8382
-0.5 135.0 1.46 0.707 0.4613
-0.5 225.0 1.63 0.632 0.3303
-0.5 255.0 3.79 1.16 0.274
-0.5 285.0 2.95 1.14 0.2595
-0.5 315.0 3.25 1.1 0.3511
-0.5 345.0 1.58 0.592 0.2564
-0.3 15.0 1.89 0.797 0.4813
-0.3 45.0 2.46 0.733 0.2622
-0.3 75.0 2.0 0.63 0.7563
-0.3 105.0 4.27 1.06 0.7825
-0.3 135.0 1.43 0.631 0.4125
-0.3 225.0 2.11 0.873 0.5357
-0.3 255.0 2.48 0.692 0.1666
-0.3 285.0 3.66 1.11 0.2518
-0.3 315.0 2.28 0.789 0.2014
-0.3 345.0 1.41 0.627 0.2231
-0.1 15.0 2.99 1.27 0.7643
-0.1 45.0 2.73 1.07 0.3182
-0.1 75.0 3.51 1.03 0.3068
-0.1 105.0 0.947 0.351 0.1931
-0.1 135.0 3.06 1.08 0.6815
-0.1 165.0 5.2 6.38 3.7577
-0.1 225.0 3.34 1.32 0.6386
-0.1 255.0 6.0 1.39 1.1644
-0.1 285.0 4.44 1.2 0.1167
-0.1 315.0 1.86 0.669 0.2629
-0.1 345.0 1.02 0.634 0.0682
0.1 15.0 2.25 0.838 0.2965
0.1 45.0 1.5 0.568 0.0758
0.1 75.0 3.46 0.888 0.2323
0.1 105.0 2.48 0.759 0.2521
0.1 135.0 5.97 2.24 0.5551
0.1 165.0 3.9 3.2 2.2321
0.1 195.0 9.32 7.16 3.6896
0.1 225.0 3.01 1.2 0.3525
0.1 255.0 2.92 0.73 0.2737
0.1 285.0 2.63 0.772 0.1458
0.1 315.0 1.2 0.488 0.3691
0.1 345.0 1.73 0.856 0.3164
0.3 15.0 2.4 1.03 0.459
0.3 45.0 1.88 0.606 0.2314
0.3 75.0 2.36 0.655 0.2586
0.3 105.0 3.8 0.967 0.3402
0.3 135.0 5.36 2.18 1.4269
0.3 165.0 1.68 1.82 0.9521
0.3 195.0 5.1 3.31 2.0894
0.3 225.0 5.7 1.9 0.5084
0.3 255.0 3.28 0.793 0.1465
0.3 285.0 2.11 0.693 0.1618
0.3 315.0 2.08 0.739 0.2396
0.3 345.0 3.03 1.63 0.987
0.5 15.0 2.8 0.908 0.625
0.5 45.0 2.7 0.88 0.359
0.5 75.0 1.64 0.483 0.7851
0.5 105.0 1.35 0.49 0.1771
0.5 135.0 1.92 1.04 0.4423
0.5 165.0 2.55 1.46 0.4877
0.5 195.0 1.9 0.833 0.661
0.5 225.0 0.486 0.498 0.1117
0.5 255.0 2.69 0.842 0.0835
0.5 285.0 3.67 0.983 0.5208
0.5 315.0 4.07 1.25 0.9073
0.5 345.0 0.62 0.331 0.0598
0.7 15.0 1.53 0.658 0.4338
0.7 45.0 1.21 0.48 0.1931
0.7 75.0 1.56 0.568 0.2594
0.7 105.0 1.17 0.527 0.115
0.7 135.0 1.09 0.581 0.345
0.7 165.0 1.19 1.31 1.0373
0.7 195.0 4.18 2.48 0.4669
0.7 225.0 1.03 0.636 0.2106
0.7 255.0 1.05 0.347 0.6006
0.7 285.0 2.24 0.708 0.5963
0.7 315.0 2.19 0.747 0.0992
0.7 345.0 1.27 0.546 0.1969
0.9 15.0 0.808 0.381 0.6352
0.9 45.0 1.04 0.458 0.2499
0.9 75.0 0.92 0.514 0.295
0.9 105.0 1.02 0.535 0.2317
0.9 135.0 0.43 0.449 0.3093
0.9 255.0 1.1 0.453 1.1189
0.9 285.0 1.36 0.71 0.3929
0.9 315.0 0.631 0.395 0.2661
0.9 345.0 2.3 1.09 0.3094
