Measurement E9M183

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.6 — 0.7 GeV2
W: 1.48 GeV
ε: 0.789
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

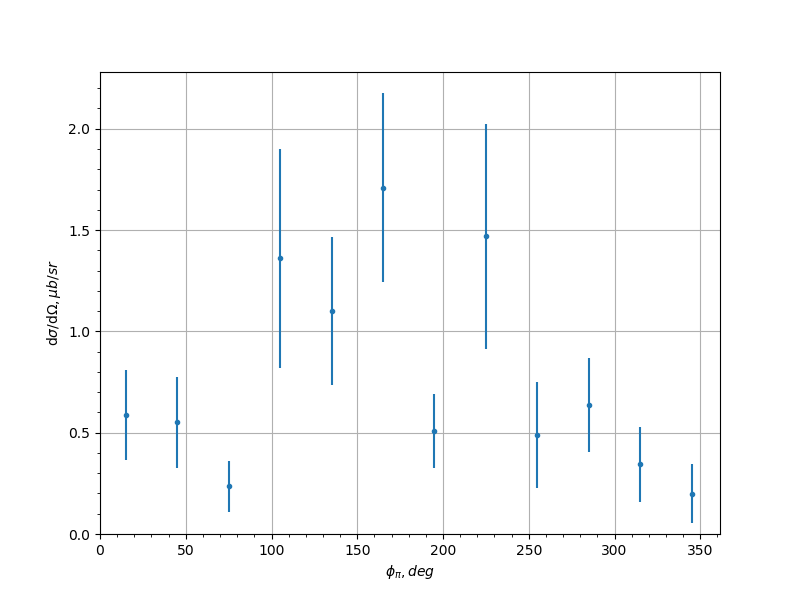

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.586 0.222 0.347
-0.9 45.0 0.552 0.224 0.0816
-0.9 75.0 0.235 0.124 0.2676
-0.9 105.0 1.36 0.54 0.3041
-0.9 135.0 1.1 0.364 0.5833
-0.9 165.0 1.71 0.464 0.3859
-0.9 195.0 0.508 0.182 0.328
-0.9 225.0 1.47 0.555 0.3721
-0.9 255.0 0.489 0.263 0.1641
-0.9 285.0 0.637 0.234 0.1417
-0.9 315.0 0.344 0.185 0.0853
-0.9 345.0 0.198 0.146 0.2912
-0.7 15.0 0.636 0.231 0.136
-0.7 45.0 0.832 0.344 0.0732
-0.7 75.0 0.776 0.367 0.4255
-0.7 105.0 0.856 0.525 2.5159
-0.7 135.0 1.63 1.79 0.884
-0.7 165.0 1.23 0.363 0.7001
-0.7 195.0 2.28 0.6 0.7125
-0.7 225.0 2.0 1.32 2.2159
-0.7 255.0 4.06 3.71 2.3858
-0.7 285.0 2.24 0.883 0.4433
-0.7 315.0 0.755 0.229 0.3332
-0.7 345.0 0.59 0.211 0.1956
-0.5 15.0 0.764 0.214 0.0366
-0.5 45.0 2.25 0.584 0.3722
-0.5 75.0 1.47 0.636 0.9012
-0.5 105.0 4.07 1.11 0.2859
-0.5 135.0 1.59 0.713 0.3408
-0.5 225.0 2.97 1.4 0.8571
-0.5 255.0 3.73 1.14 1.151
-0.5 285.0 3.48 1.33 0.5929
-0.5 315.0 0.388 0.178 0.0602
-0.5 345.0 1.42 0.317 0.4355
-0.3 15.0 1.66 0.335 0.2026
-0.3 45.0 1.8 0.528 0.1475
-0.3 75.0 3.29 0.867 0.3057
-0.3 105.0 4.44 0.776 0.5307
-0.3 135.0 2.65 0.48 0.7037
-0.3 165.0 2.29 1.56 1.1612
-0.3 195.0 4.85 3.71 3.6022
-0.3 225.0 2.41 0.533 0.567
-0.3 255.0 3.66 0.63 0.2693
-0.3 285.0 2.9 1.06 0.2127
-0.3 315.0 2.11 0.557 0.1292
-0.3 345.0 1.41 0.313 0.0403
-0.1 15.0 1.45 0.377 0.171
-0.1 45.0 3.17 0.679 0.3039
-0.1 75.0 4.7 0.95 0.8445
-0.1 105.0 2.77 0.487 0.3518
-0.1 135.0 2.94 0.523 0.2301
-0.1 165.0 4.2 1.53 1.5938
-0.1 195.0 4.62 1.75 0.9881
-0.1 225.0 2.49 0.447 0.2871
-0.1 255.0 3.66 0.583 0.5294
-0.1 285.0 3.1 0.784 0.4504
-0.1 315.0 2.01 0.505 0.3453
-0.1 345.0 1.32 0.345 0.2532
0.1 15.0 1.81 0.425 0.5546
0.1 45.0 3.24 0.75 0.1956
0.1 75.0 2.8 0.609 0.0955
0.1 105.0 2.46 0.412 0.4145
0.1 135.0 2.97 0.59 0.1969
0.1 165.0 4.39 5.38 3.0036
0.1 225.0 3.03 0.535 0.1843
0.1 255.0 4.41 0.712 0.6477
0.1 285.0 3.33 0.655 0.6543
0.1 315.0 3.76 0.91 0.7096
0.1 345.0 2.78 0.727 0.5738
0.3 15.0 1.44 0.361 0.0354
0.3 45.0 2.9 0.719 0.0682
0.3 75.0 3.33 0.681 0.4022
0.3 105.0 2.94 0.516 0.066
0.3 135.0 2.62 0.607 0.2132
0.3 225.0 3.46 0.737 1.0064
0.3 255.0 2.67 0.484 0.1381
0.3 285.0 3.55 0.671 0.2599
0.3 315.0 1.65 0.501 0.1036
0.3 345.0 2.66 0.609 0.1218
0.5 15.0 0.713 0.182 0.1701
0.5 45.0 1.39 0.418 0.0838
0.5 75.0 3.1 0.603 0.3227
0.5 105.0 2.67 0.514 0.1986
0.5 135.0 4.39 1.14 0.5091
0.5 225.0 2.38 0.666 0.4566
0.5 255.0 1.82 0.348 0.2869
0.5 285.0 2.66 0.533 0.2701
0.5 315.0 2.0 0.542 0.2562
0.5 345.0 2.23 0.529 0.1445
0.7 15.0 1.66 0.476 0.3074
0.7 45.0 2.33 0.707 0.1544
0.7 75.0 0.93 0.276 0.1739
0.7 105.0 1.47 0.382 0.1228
0.7 135.0 1.41 0.499 0.2932
0.7 225.0 1.66 0.618 0.2114
0.7 255.0 1.97 0.442 0.1853
0.7 285.0 1.77 0.396 0.3158
0.7 315.0 0.817 0.356 0.1027
0.7 345.0 1.59 0.434 0.2409
0.9 15.0 2.54 0.955 0.553
0.9 45.0 0.558 0.235 0.2523
0.9 75.0 1.55 0.498 0.2887
0.9 105.0 0.947 0.331 0.252
0.9 135.0 1.86 0.976 0.8705
0.9 225.0 0.715 0.386 0.36
0.9 255.0 0.754 0.262 0.144
0.9 285.0 1.46 0.517 0.3765
0.9 315.0 0.998 0.352 0.2852
0.9 345.0 2.12 0.725 0.457
