Measurement E9M184

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.6 — 0.7 GeV2
W: 1.5 GeV
ε: 0.779
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

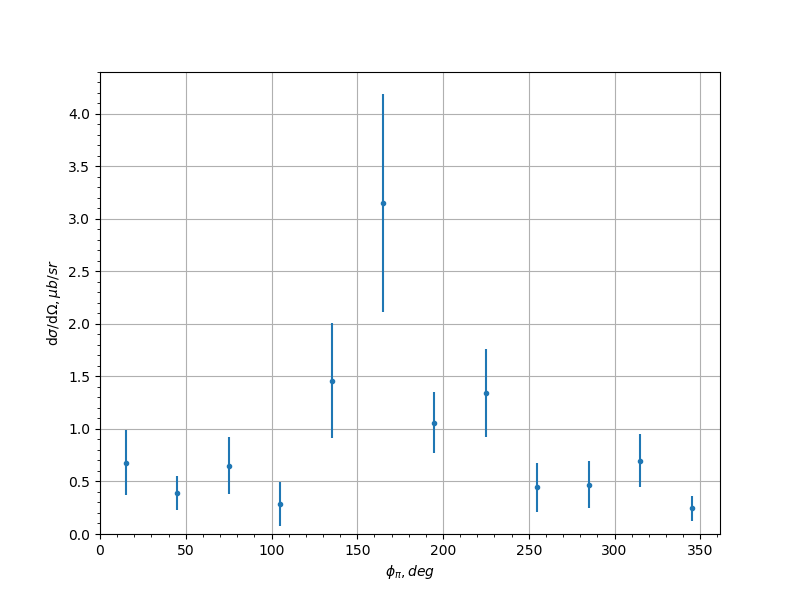

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.676 0.309 0.06
-0.9 45.0 0.39 0.16 0.2143
-0.9 75.0 0.65 0.27 0.1754
-0.9 105.0 0.287 0.21 0.1562
-0.9 135.0 1.46 0.547 0.2046
-0.9 165.0 3.15 1.04 1.1095
-0.9 195.0 1.06 0.29 0.1259
-0.9 225.0 1.34 0.418 0.1115
-0.9 255.0 0.443 0.237 0.1675
-0.9 285.0 0.468 0.224 0.154
-0.9 315.0 0.699 0.253 0.3837
-0.9 345.0 0.243 0.117 0.0391
-0.7 15.0 0.535 0.203 0.0291
-0.7 45.0 0.647 0.196 0.3533
-0.7 75.0 0.385 0.231 0.363
-0.7 105.0 1.16 0.882 0.658
-0.7 135.0 1.09 1.17 0.5875
-0.7 165.0 1.97 0.673 0.7833
-0.7 195.0 1.79 0.629 1.0769
-0.7 225.0 1.07 1.17 0.7907
-0.7 255.0 2.22 1.79 0.6942
-0.7 285.0 1.09 0.448 0.5625
-0.7 315.0 1.02 0.319 0.1785
-0.7 345.0 0.697 0.228 0.1194
-0.5 15.0 1.1 0.247 0.1689
-0.5 45.0 1.51 0.489 0.1861
-0.5 75.0 3.66 1.85 1.3281
-0.5 105.0 1.3 0.418 0.2563
-0.5 135.0 3.0 0.927 0.7536
-0.5 225.0 2.37 0.752 0.5853
-0.5 255.0 3.04 0.839 0.3444
-0.5 285.0 2.14 0.828 0.5615
-0.5 315.0 1.99 0.52 0.4251
-0.5 345.0 0.854 0.245 0.0904
-0.3 15.0 1.06 0.204 0.2604
-0.3 45.0 2.35 0.572 0.0453
-0.3 75.0 6.26 1.52 1.132
-0.3 105.0 3.0 0.512 0.1875
-0.3 135.0 3.0 0.511 0.5972
-0.3 165.0 4.38 2.27 3.2864
-0.3 195.0 1.41 0.892 0.9219
-0.3 225.0 4.39 0.742 1.2415
-0.3 255.0 3.65 0.629 0.3904
-0.3 285.0 4.74 1.18 0.8821
-0.3 315.0 2.84 0.7 0.1181
-0.3 345.0 0.777 0.19 0.091
-0.1 15.0 1.61 0.398 0.3494
-0.1 45.0 1.88 0.522 0.1268
-0.1 75.0 1.79 0.462 0.169
-0.1 105.0 3.13 0.475 0.1553
-0.1 135.0 2.72 0.473 0.337
-0.1 165.0 2.5 1.2 0.6696
-0.1 195.0 3.59 1.58 0.6451
-0.1 225.0 3.69 0.628 0.1469
-0.1 255.0 5.39 0.786 0.7905
-0.1 285.0 3.92 0.8 0.0941
-0.1 315.0 0.955 0.353 0.1265
-0.1 345.0 1.27 0.33 0.2895
0.1 15.0 1.37 0.417 0.1409
0.1 45.0 2.23 0.624 0.0955
0.1 75.0 2.92 0.575 0.1515
0.1 105.0 5.69 0.796 0.5925
0.1 135.0 3.26 0.627 0.2707
0.1 225.0 3.96 0.691 0.3954
0.1 255.0 4.84 0.653 0.4527
0.1 285.0 2.52 0.529 0.0779
0.1 315.0 2.36 0.686 0.0634
0.1 345.0 2.16 0.56 0.2588
0.3 15.0 1.01 0.331 0.026
0.3 45.0 1.49 0.482 0.068
0.3 75.0 2.95 0.539 0.1275
0.3 105.0 4.59 0.685 0.4021
0.3 135.0 2.4 0.594 0.8336
0.3 225.0 4.22 0.973 0.247
0.3 255.0 4.6 0.71 0.4115
0.3 285.0 4.25 0.772 0.4752
0.3 315.0 1.48 0.478 0.5355
0.3 345.0 1.05 0.377 0.0962
0.5 15.0 2.86 0.784 0.1208
0.5 45.0 1.73 0.504 0.2715
0.5 75.0 3.49 0.597 0.2269
0.5 105.0 3.01 0.569 0.3425
0.5 135.0 2.57 0.771 0.754
0.5 195.0 4.36 3.99 2.7132
0.5 225.0 3.18 0.831 0.9621
0.5 255.0 2.36 0.438 0.2078
0.5 285.0 2.02 0.378 0.1081
0.5 315.0 2.39 0.782 0.3818
0.5 345.0 1.7 0.424 0.1306
0.7 15.0 1.64 0.471 0.2016
0.7 45.0 1.96 0.658 0.2801
0.7 75.0 2.63 0.558 0.1591
0.7 105.0 1.25 0.309 0.2054
0.7 135.0 1.82 0.688 0.2887
0.7 165.0 1.35 1.06 2.5078
0.7 225.0 1.57 0.528 0.8418
0.7 255.0 1.88 0.432 0.3136
0.7 285.0 2.42 0.474 0.2834
0.7 315.0 1.79 0.644 0.1993
0.7 345.0 1.12 0.361 0.9076
0.9 15.0 0.907 0.385 0.1758
0.9 45.0 1.11 0.462 0.1221
0.9 75.0 1.73 0.534 0.3784
0.9 105.0 1.58 0.416 0.3293
0.9 135.0 1.36 0.705 0.4202
0.9 225.0 0.548 0.264 0.2917
0.9 255.0 0.491 0.174 0.356
0.9 285.0 2.14 0.655 0.4708
0.9 315.0 0.82 0.374 0.1498
0.9 345.0 0.236 0.127 0.1257
