Measurement E9M50

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 1.3 — 1.6 GeV2
W: 1.48 GeV
ε: 0.528
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

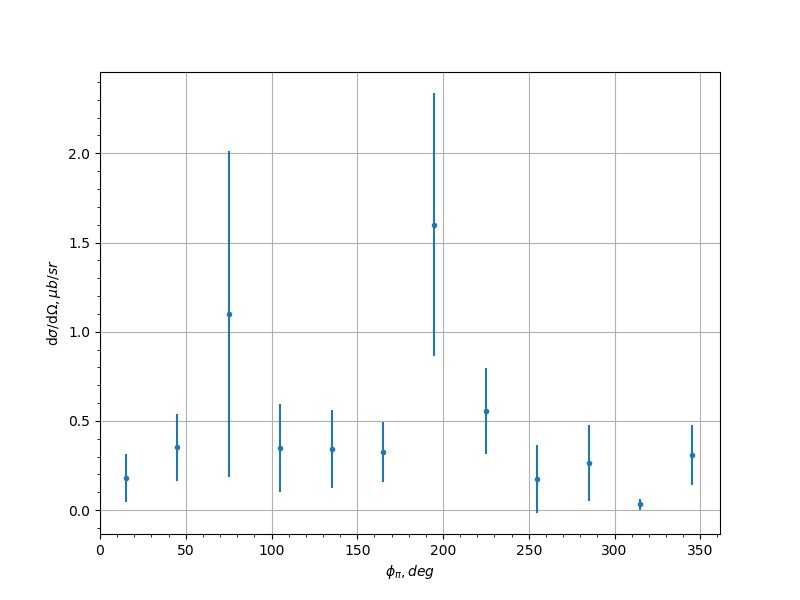

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.179 0.136 0.1232
-0.9 45.0 0.352 0.188 0.7164
-0.9 75.0 1.1 0.912 0.3793
-0.9 105.0 0.348 0.246 0.1024
-0.9 135.0 0.344 0.22 0.1481
-0.9 165.0 0.327 0.168 0.0587
-0.9 195.0 1.6 0.738 0.3219
-0.9 225.0 0.553 0.241 0.3822
-0.9 255.0 0.174 0.19 0.0862
-0.9 285.0 0.265 0.211 0.1209
-0.9 315.0 0.0319 0.0328 0.1031
-0.9 345.0 0.311 0.168 0.0478
-0.7 15.0 0.309 0.123 0.1643
-0.7 45.0 0.482 0.264 0.1301
-0.7 75.0 0.288 0.161 0.1117
-0.7 105.0 0.915 0.482 0.2932
-0.7 135.0 3.36 2.28 1.5125
-0.7 165.0 0.707 0.34 0.0599
-0.7 195.0 0.944 0.428 0.3676
-0.7 225.0 0.821 0.524 0.5853
-0.7 255.0 0.63 0.299 0.1134
-0.7 285.0 1.49 0.533 0.3978
-0.7 315.0 0.641 0.297 0.1153
-0.7 345.0 0.326 0.146 0.0648
-0.5 15.0 0.493 0.271 0.0786
-0.5 45.0 0.998 0.408 0.1928
-0.5 75.0 0.828 0.333 0.0765
-0.5 105.0 0.806 0.413 0.2125
-0.5 135.0 1.72 1.07 0.1663
-0.5 195.0 4.27 3.51 1.4805
-0.5 225.0 0.651 0.409 0.2176
-0.5 255.0 1.37 0.462 0.2049
-0.5 285.0 0.62 0.232 0.3189
-0.5 315.0 1.52 0.519 0.2113
-0.5 345.0 0.623 0.342 0.1808
-0.3 15.0 0.962 0.392 0.0926
-0.3 45.0 0.977 0.386 0.2896
-0.3 75.0 1.68 0.569 0.208
-0.3 105.0 1.16 0.354 0.2802
-0.3 135.0 2.61 0.869 0.6381
-0.3 195.0 5.42 7.67 4.6939
-0.3 225.0 2.34 0.806 0.799
-0.3 255.0 1.07 0.311 0.8279
-0.3 285.0 1.37 0.43 0.1927
-0.3 315.0 0.535 0.207 0.0506
-0.3 345.0 2.07 0.761 0.3659
-0.1 15.0 0.628 0.243 0.2911
-0.1 45.0 1.89 0.545 0.25
-0.1 75.0 1.75 0.522 0.3277
-0.1 105.0 1.63 0.52 0.443
-0.1 135.0 1.79 0.457 0.363
-0.1 165.0 6.94 8.51 5.7286
-0.1 195.0 3.27 4.63 4.6118
-0.1 225.0 1.79 0.503 0.3383
-0.1 255.0 1.83 0.484 0.5141
-0.1 285.0 1.42 0.408 0.5875
-0.1 315.0 1.35 0.358 0.1387
-0.1 345.0 0.856 0.299 0.0543
0.1 15.0 0.861 0.336 0.3078
0.1 45.0 1.71 0.534 0.2488
0.1 75.0 3.14 0.928 0.6424
0.1 105.0 1.44 0.365 0.3489
0.1 135.0 1.22 0.364 0.3338
0.1 165.0 5.4 5.43 3.1215
0.1 225.0 1.77 0.449 0.2491
0.1 255.0 2.54 0.597 0.2465
0.1 285.0 0.842 0.278 0.5205
0.1 315.0 0.98 0.317 0.1387
0.1 345.0 0.764 0.311 0.2527
0.3 15.0 1.15 0.398 0.1131
0.3 45.0 0.846 0.312 0.127
0.3 75.0 1.65 0.466 0.1246
0.3 105.0 1.36 0.316 0.3714
0.3 135.0 1.07 0.292 0.8247
0.3 225.0 0.715 0.239 0.1057
0.3 255.0 2.37 0.584 0.2648
0.3 285.0 2.63 0.751 0.294
0.3 315.0 0.738 0.26 0.043
0.3 345.0 2.13 0.709 0.402
0.5 15.0 1.71 0.599 0.1736
0.5 45.0 1.32 0.449 0.0568
0.5 75.0 0.664 0.226 0.0638
0.5 105.0 1.27 0.346 0.1162
0.5 135.0 2.06 0.81 0.7283
0.5 165.0 2.52 3.58 1.8183
0.5 225.0 0.717 0.272 0.0817
0.5 255.0 1.05 0.263 0.1316
0.5 285.0 1.34 0.434 0.1778
0.5 315.0 2.69 0.91 0.8149
0.5 345.0 1.01 0.287 0.1392
0.7 15.0 0.783 0.368 0.1419
0.7 45.0 1.05 0.38 0.4169
0.7 75.0 0.498 0.227 0.1041
0.7 105.0 0.561 0.232 0.0896
0.7 135.0 0.864 0.332 0.2284
0.7 225.0 1.03 0.44 0.2784
0.7 255.0 0.478 0.183 0.1335
0.7 285.0 1.24 0.458 0.2615
0.7 315.0 0.315 0.197 0.039
0.7 345.0 0.671 0.304 0.3973
0.9 15.0 0.319 0.276 0.1374
0.9 45.0 0.299 0.181 0.106
0.9 75.0 0.443 0.514 0.2256
0.9 105.0 0.248 0.193 0.0904
0.9 135.0 0.698 0.493 0.3185
0.9 195.0 1.46 1.21 0.5577
0.9 225.0 2.17 2.52 1.0723
0.9 255.0 0.759 0.627 0.5241
0.9 285.0 0.785 0.373 0.1893
0.9 315.0 0.631 0.331 0.2574
0.9 345.0 0.24 0.153 0.139
