Measurement E9M51

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 1.3 — 1.6 GeV2
W: 1.5 GeV
ε: 0.512
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

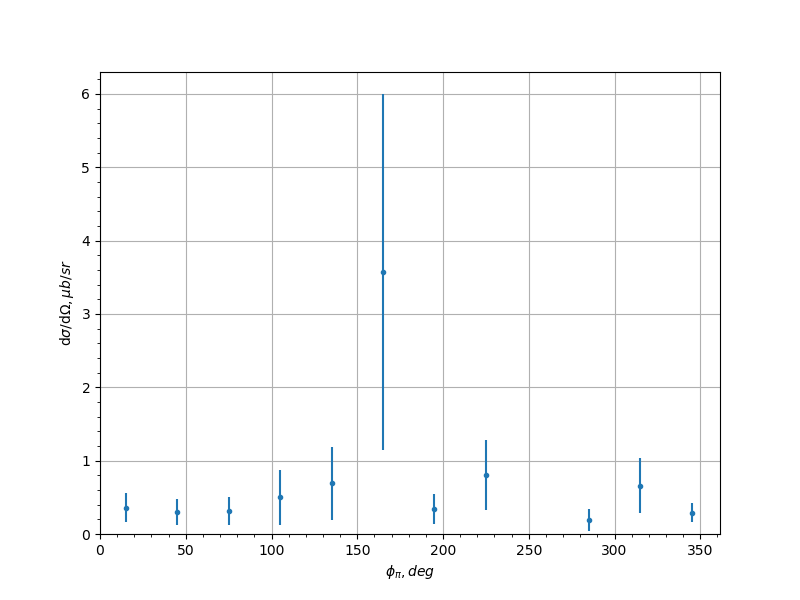

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.357 0.2 0.1659
-0.9 45.0 0.302 0.178 0.0655
-0.9 75.0 0.312 0.19 0.3107
-0.9 105.0 0.498 0.372 0.0691
-0.9 135.0 0.689 0.494 0.5043
-0.9 165.0 3.57 2.43 1.2281
-0.9 195.0 0.345 0.205 0.1509
-0.9 225.0 0.805 0.477 0.2237
-0.9 285.0 0.186 0.148 0.0818
-0.9 315.0 0.657 0.373 0.188
-0.9 345.0 0.293 0.134 0.1761
-0.7 15.0 0.345 0.12 0.1835
-0.7 45.0 0.531 0.219 0.2015
-0.7 75.0 0.866 0.494 0.3709
-0.7 105.0 0.807 0.392 0.4435
-0.7 135.0 1.17 0.692 0.5175
-0.7 165.0 0.871 0.47 0.3285
-0.7 195.0 0.457 0.359 0.3096
-0.7 225.0 1.57 1.37 0.4899
-0.7 255.0 2.5 1.26 0.7074
-0.7 285.0 0.544 0.307 0.2135
-0.7 315.0 0.956 0.389 0.1051
-0.7 345.0 0.459 0.195 0.085
-0.5 15.0 0.856 0.441 1.0598
-0.5 45.0 3.11 1.29 1.193
-0.5 75.0 1.48 0.514 0.2257
-0.5 105.0 1.15 0.441 0.1884
-0.5 135.0 1.04 0.531 1.2908
-0.5 195.0 0.482 0.517 0.4843
-0.5 225.0 3.07 1.36 1.2637
-0.5 255.0 2.38 1.1 0.5849
-0.5 285.0 0.685 0.269 0.1338
-0.5 315.0 0.486 0.235 0.0587
-0.5 345.0 0.683 0.42 0.1269
-0.3 15.0 0.597 0.324 0.0586
-0.3 45.0 1.65 0.607 0.5438
-0.3 75.0 1.63 0.492 0.2475
-0.3 105.0 1.95 0.705 0.3898
-0.3 135.0 3.45 1.5 1.018
-0.3 195.0 1.48 1.81 1.1034
-0.3 225.0 2.56 1.11 0.5847
-0.3 255.0 0.935 0.354 0.1435
-0.3 285.0 1.32 0.437 0.237
-0.3 315.0 1.34 0.536 0.223
-0.3 345.0 1.16 0.601 0.2663
-0.1 15.0 0.679 0.428 0.0301
-0.1 45.0 1.15 0.366 0.3368
-0.1 75.0 1.13 0.414 0.3095
-0.1 105.0 1.03 0.285 0.2288
-0.1 135.0 2.06 0.76 0.6867
-0.1 165.0 2.97 4.21 2.5386
-0.1 225.0 1.46 0.435 0.2169
-0.1 255.0 2.79 0.759 0.322
-0.1 285.0 2.77 0.704 0.2525
-0.1 315.0 1.29 0.37 0.1553
-0.1 345.0 1.03 0.594 0.0781
0.1 15.0 1.34 0.528 0.205
0.1 45.0 1.46 0.45 0.2628
0.1 75.0 1.24 0.362 0.4464
0.1 105.0 2.28 0.543 0.3207
0.1 135.0 1.66 0.515 0.3684
0.1 225.0 3.01 0.798 0.2399
0.1 255.0 1.25 0.314 0.5726
0.1 285.0 1.89 0.569 0.3178
0.1 315.0 0.758 0.268 0.4151
0.1 345.0 1.31 0.678 0.3346
0.3 15.0 1.59 0.661 0.3879
0.3 45.0 0.992 0.298 0.2678
0.3 75.0 1.44 0.471 0.2765
0.3 105.0 1.1 0.277 0.4767
0.3 135.0 1.79 0.543 0.3824
0.3 225.0 2.13 0.681 0.7149
0.3 255.0 2.57 0.578 0.2494
0.3 285.0 2.27 0.565 0.1819
0.3 315.0 1.09 0.379 0.146
0.3 345.0 2.36 1.13 0.3983
0.5 15.0 1.29 0.471 0.1681
0.5 45.0 1.13 0.437 0.1026
0.5 75.0 0.696 0.233 0.1328
0.5 105.0 1.83 0.465 0.1878
0.5 135.0 0.754 0.299 0.1563
0.5 225.0 0.591 0.229 0.1529
0.5 255.0 1.1 0.323 0.111
0.5 285.0 1.72 0.435 0.1006
0.5 315.0 1.15 0.409 0.1596
0.5 345.0 0.824 0.327 0.0579
0.7 15.0 2.13 1.08 5.0375
0.7 45.0 0.932 0.484 0.2401
0.7 75.0 1.81 0.643 0.6247
0.7 105.0 0.314 0.113 0.2413
0.7 135.0 1.05 0.364 0.0585
0.7 225.0 0.801 0.302 0.1702
0.7 255.0 0.77 0.24 0.349
0.7 285.0 1.92 0.733 0.5137
0.7 315.0 0.234 0.125 0.2188
0.7 345.0 0.123 0.128 0.0271
0.9 15.0 0.111 0.0777 0.0574
0.9 45.0 0.661 0.345 0.2582
0.9 75.0 0.866 0.421 0.6053
0.9 105.0 0.378 0.182 0.1638
0.9 135.0 0.343 0.177 0.0898
0.9 195.0 0.696 0.862 0.4664
0.9 225.0 0.123 0.133 0.0567
0.9 255.0 0.931 0.529 0.4844
0.9 285.0 0.194 0.107 0.1792
0.9 315.0 0.883 0.664 0.3851
