Measurement E142M270
| Experiment: | E00-112 CLAS experiment | |
|---|---|---|
| Year: | 0 | |
| Spokesperson: | Daniel S. Carman | |
| Reaction: | ep → K+ Σ0 | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 2.6 GeV2 | |
| W: | 2.075 GeV | |
| Publication: |
D. S. Carman et al. (CLAS Collaboration) //
Phys. Rev. C 87, 025204 (2013)
|
|

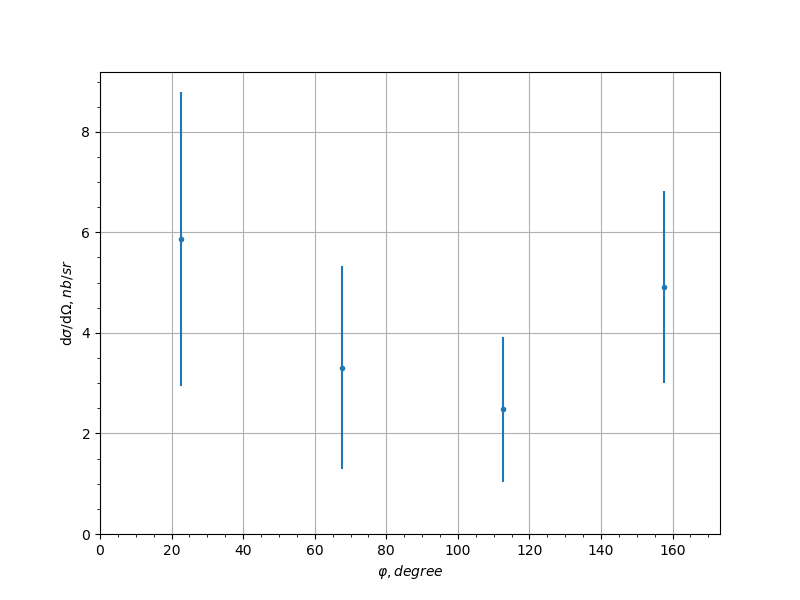

| cos(θ) | φ, [degree] | dσ/dΩ, [nb/sr] | uncertainty |
|---|---|---|---|
| -0.775 | -157.5 | 2.96 | 1.481 |
| -0.775 | -112.5 | 2.674 | 1.499 |
| -0.775 | -67.5 | 4.278 | 2.301 |
| -0.775 | -22.5 | 2.621 | 1.949 |
| -0.775 | 22.5 | 5.859 | 2.925 |
| -0.775 | 67.5 | 3.306 | 2.02 |
| -0.775 | 112.5 | 2.479 | 1.443 |
| -0.775 | 157.5 | 4.917 | 1.915 |
| -0.525 | -157.5 | 1.185 | 0.843 |
| -0.525 | -112.5 | 1.659 | 1.028 |
| -0.525 | -67.5 | 2.812 | 1.548 |
| -0.525 | -22.5 | 1.076 | 0.977 |
| -0.525 | 22.5 | 2.509 | 1.494 |
| -0.525 | 67.5 | 3.876 | 1.819 |
| -0.525 | 112.5 | 2.406 | 1.238 |
| -0.525 | 157.5 | 3.15 | 1.378 |
| -0.3 | -157.5 | 2.634 | 1.356 |
| -0.3 | -112.5 | 3.305 | 1.615 |
| -0.3 | -67.5 | 2.399 | 1.598 |
| -0.3 | -22.5 | 3.236 | 1.965 |
| -0.3 | 22.5 | 5.818 | 2.64 |
| -0.3 | 67.5 | 3.177 | 1.84 |
| -0.3 | 112.5 | 3.214 | 1.593 |
| -0.3 | 157.5 | 1.787 | 1.116 |
| -0.1 | -157.5 | 8.107 | 2.089 |
| -0.1 | -112.5 | 6.772 | 1.992 |
| -0.1 | -67.5 | 5.008 | 1.935 |
| -0.1 | -22.5 | 5.549 | 2.534 |
| -0.1 | 22.5 | 6.818 | 2.812 |
| -0.1 | 67.5 | 5.184 | 1.969 |
| -0.1 | 112.5 | 4.493 | 1.621 |
| -0.1 | 157.5 | 5.155 | 1.661 |
| 0.1 | -157.5 | 9.432 | 2.104 |
| 0.1 | -112.5 | 5.886 | 1.938 |
| 0.1 | -67.5 | 8.523 | 2.279 |
| 0.1 | -22.5 | 3.894 | 2.57 |
| 0.1 | 22.5 | 8.729 | 3.857 |
| 0.1 | 67.5 | 6.1 | 1.925 |
| 0.1 | 112.5 | 7.516 | 2.192 |
| 0.1 | 157.5 | 9.951 | 2.162 |
| 0.3 | -157.5 | 13.607 | 2.498 |
| 0.3 | -112.5 | 9.002 | 2.342 |
| 0.3 | -67.5 | 12.365 | 2.459 |
| 0.3 | -22.5 | 11.021 | 6.595 |
| 0.3 | 22.5 | 13.926 | 7.421 |
| 0.3 | 67.5 | 10.992 | 2.316 |
| 0.3 | 112.5 | 14.387 | 2.966 |
| 0.3 | 157.5 | 14.379 | 2.569 |
| 0.5 | -157.5 | 17.927 | 2.961 |
| 0.5 | -112.5 | 14.527 | 3.246 |
| 0.5 | -67.5 | 14.796 | 2.77 |
| 0.5 | -22.5 | 20.038 | 5.982 |
| 0.5 | 22.5 | 12.619 | 4.736 |
| 0.5 | 67.5 | 16.497 | 2.927 |
| 0.5 | 112.5 | 15.811 | 3.388 |
| 0.5 | 157.5 | 19.877 | 3.12 |
| 0.675 | -157.5 | 19.448 | 3.608 |
| 0.675 | -112.5 | 17.506 | 4.609 |
| 0.675 | -67.5 | 19.185 | 4.784 |
| 0.675 | -22.5 | 22.794 | 10.092 |
| 0.675 | 22.5 | 18.011 | 8.96 |
| 0.675 | 67.5 | 15.875 | 4.349 |
| 0.675 | 112.5 | 22.456 | 5.225 |
| 0.675 | 157.5 | 19.102 | 3.575 |
| 0.825 | -157.5 | 27.328 | 4.065 |
| 0.825 | -112.5 | 23.001 | 5.27 |
| 0.825 | -67.5 | 16.508 | 5.926 |
| 0.825 | -22.5 | 24.1 | 7.84 |
| 0.825 | 22.5 | 21.839 | 7.459 |
| 0.825 | 67.5 | 18.726 | 6.314 |
| 0.825 | 112.5 | 27.229 | 5.737 |
| 0.825 | 157.5 | 27.778 | 4.099 |
| 0.95 | -157.5 | 35.362 | 6.263 |
| 0.95 | -112.5 | 35.226 | 6.609 |
| 0.95 | -67.5 | 36.327 | 7.0 |
| 0.95 | -22.5 | 32.966 | 6.274 |
| 0.95 | 22.5 | 32.784 | 6.257 |
| 0.95 | 67.5 | 35.039 | 6.874 |
| 0.95 | 112.5 | 38.414 | 6.904 |
| 0.95 | 157.5 | 35.019 | 6.232 |
Experiment comment:
