Measurement E20M1

Experiment: e6a CLAS experiment
Year: 2006
Spokespersons: K. Sh. Egiyan, K. A. Griffioen and M. Strikman
Reaction: ed → p n
Polarization: none
Quantity: dσ/(dQ2 dPn)
Q2: 1.75 — 5.5 GeV2
Publication:
K.Sh. Egiyan, G.A. Asryan, N. Gevorgyan, K.A. Griffioen, J.M. Laget, S.E. Kuhn and CLAS Collaboration Experimental Study of Exclusive 2H(e,e'p)n Reaction Mechanisms at High Q2 // PRL 98, 262502 (2007)

Slice: Q2 = GeV2

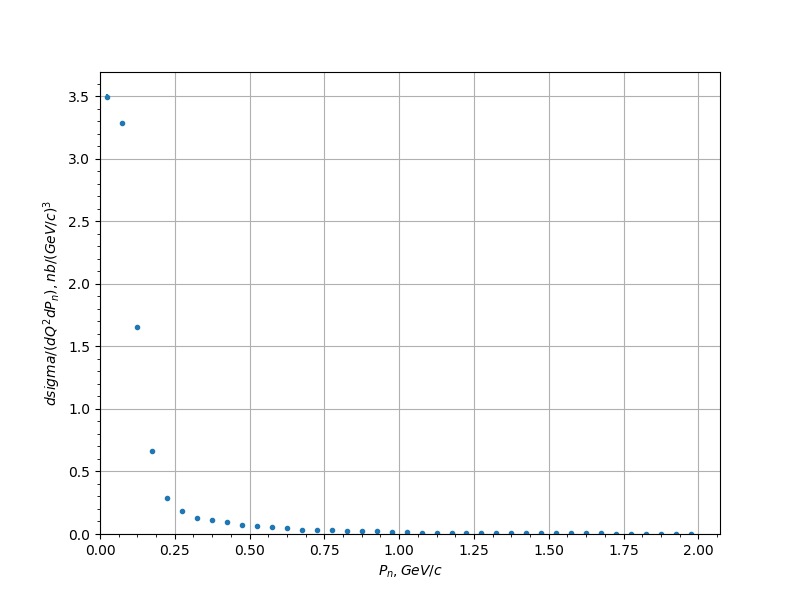

Measurement data
Q2, [GeV2] Pn, [GeV/c] dσ/(dQ2 dPn), [nb/(GeV/c)3] uncertainty
2.0 0.025 3.499072 0.02009866
2.0 0.075 3.289791 0.01383989
2.0 0.125 1.653773 0.01000982
2.0 0.175 0.6630705 0.006242063
2.0 0.225 0.2891606 0.003946321
2.0 0.275 0.1814839 0.003284541
2.0 0.325 0.1318596 0.00278108
2.0 0.375 0.1144638 0.00266267
2.0 0.425 0.09508393 0.002436448
2.0 0.475 0.07579353 0.002259726
2.0 0.525 0.06529226 0.002260886
2.0 0.575 0.0539336 0.002224184
2.0 0.625 0.04475405 0.002140876
2.0 0.675 0.03501686 0.001976116
2.0 0.725 0.03459863 0.002056675
2.0 0.775 0.02822237 0.00178494
2.0 0.825 0.0231146 0.001547868
2.0 0.875 0.02047251 0.001429862
2.0 0.925 0.0226103 0.001459489
2.0 0.975 0.01814612 0.001258207
2.0 1.025 0.01393832 0.001062787
2.0 1.075 0.01076309 0.0008788026
2.0 1.125 0.01187562 0.000953873
2.0 1.175 0.01039384 0.0008375599
2.0 1.225 0.007923631 0.0006343982
2.0 1.275 0.009354861 0.0007795717
2.0 1.325 0.00807301 0.0007495601
2.0 1.375 0.00794976 0.0007026662
2.0 1.425 0.005890476 0.000546917
2.0 1.475 0.005245175 0.0005381436
2.0 1.525 0.008240368 0.0007717812
2.0 1.575 0.005310414 0.0005258093
2.0 1.625 0.005455713 0.0005349767
2.0 1.675 0.004477603 0.0004569935
2.0 1.725 0.003080911 0.0003361549
2.0 1.775 0.00295704 0.0003484904
2.0 1.825 0.002423558 0.0002780012
2.0 1.875 0.00318496 0.0003560894
2.0 1.925 0.002939161 0.0003732738
2.0 1.975 0.001306541 0.0002065823
3.0 0.025 0.7260558 0.004570639
3.0 0.075 0.6907478 0.003121181
3.0 0.125 0.3311327 0.002149578
3.0 0.175 0.1311007 0.001358501
3.0 0.225 0.05829438 0.0009016511
3.0 0.275 0.03391441 0.0007093265
3.0 0.325 0.02560499 0.000638928
3.0 0.375 0.01878718 0.0005613744
3.0 0.425 0.01651129 0.0005388257
3.0 0.475 0.01348467 0.0005001187
3.0 0.525 0.01098202 0.0004624264
3.0 0.575 0.009389876 0.0004441259
3.0 0.625 0.007719103 0.0004198639
3.0 0.675 0.007113496 0.0004177189
3.0 0.725 0.005200563 0.0003563367
3.0 0.775 0.00450906 0.0003398832
3.0 0.825 0.003803089 0.0003115612
3.0 0.875 0.003153985 0.0002714518
3.0 0.925 0.002035925 0.0002182741
3.0 0.975 0.002239471 0.0002309838
3.0 1.025 0.00186793 0.0002026055
3.0 1.075 0.001878386 0.0002037396
3.0 1.125 0.001642755 0.0001872093
3.0 1.175 0.001294849 0.0001593849
3.0 1.225 0.001673651 0.0001848238
3.0 1.275 0.001273955 0.0001544898
3.0 1.325 0.001049363 0.0001389915
3.0 1.375 0.001075939 0.0001377598
3.0 1.425 0.00102646 0.0001273167
3.0 1.475 0.0008081961 0.0001120766
3.0 1.525 0.0008086703 0.0001080631
3.0 1.575 0.0006406555 8.970971e-05
3.0 1.625 0.000679694 9.810538e-05
3.0 1.675 0.0005191874 8.422331e-05
3.0 1.725 0.0004785741 7.763496e-05
3.0 1.775 0.0007127225 0.000107447
3.0 1.825 0.0004987377 7.885736e-05
3.0 1.875 0.0004404431 7.786007e-05
3.0 1.925 0.0007798075 0.0001102814
3.0 1.975 0.0004392784 8.020091e-05
4.0 0.025 0.1400961 0.001584246
4.0 0.075 0.1315972 0.00103826
4.0 0.125 0.06480291 0.0007373496
4.0 0.175 0.02741185 0.0005069319
4.0 0.225 0.01207366 0.0003468068
4.0 0.275 0.006957099 0.0002758669
4.0 0.325 0.004505686 0.0002302298
4.0 0.375 0.003613194 0.0002118092
4.0 0.425 0.00299584 0.0002006163
4.0 0.475 0.002306804 0.0001774464
4.0 0.525 0.001963479 0.0001647715
4.0 0.575 0.001661815 0.0001549651
4.0 0.625 0.001619998 0.0001604037
4.0 0.675 0.001159603 0.0001330156
4.0 0.725 0.001088724 0.0001274255
4.0 0.775 0.000740925 0.0001104506
4.0 0.825 0.0005664752 9.441253e-05
4.0 0.875 0.000445703 8.740956e-05
4.0 0.925 0.0005012784 9.473271e-05
4.0 0.975 0.0003581608 7.636016e-05
4.0 1.025 0.0003308402 7.219527e-05
4.0 1.075 0.0001856822 5.360185e-05
4.0 1.125 0.0001945502 5.616181e-05
4.0 1.175 0.0001917818 5.125583e-05
4.0 1.225 0.000176991 4.730284e-05
4.0 1.275 0.0001431069 4.314836e-05
4.0 1.325 0.0001545038 4.460139e-05
4.0 1.375 0.0001858982 4.799872e-05
4.0 1.425 0.0001123047 3.743489e-05
4.0 1.475 0.0001291324 3.893488e-05
4.0 1.525 7.106873e-05 2.901369e-05
4.0 1.575 0.0001288394 3.719273e-05
4.0 1.625 0.0001507425 4.180845e-05
4.0 1.675 0.0001118929 3.538365e-05
4.0 1.725 8.07861e-05 3.053428e-05
4.0 1.775 0.0001412496 3.775053e-05
4.0 1.825 0.0001061937 3.20186e-05
4.0 1.875 8.738095e-05 2.634635e-05
4.0 1.925 0.0001225538 3.275388e-05
4.0 1.975 5.094577e-05 1.925569e-05
5.0 0.025 0.03946635 0.0008024335
5.0 0.075 0.03393713 0.0004854109
5.0 0.125 0.01697404 0.000352101
5.0 0.175 0.007173455 0.0002422304
5.0 0.225 0.00290091 0.0001587307
5.0 0.275 0.001689632 0.0001259377
5.0 0.325 0.0008975473 9.460979e-05
5.0 0.375 0.0008418899 9.721309e-05
5.0 0.425 0.0006938315 8.672893e-05
5.0 0.475 0.0004867754 7.256419e-05
5.0 0.525 0.0003438385 5.98546e-05
5.0 0.575 0.0004335669 7.127797e-05
5.0 0.625 0.0002884669 5.769338e-05
5.0 0.675 0.0002268744 5.073066e-05
5.0 0.725 0.0001696092 4.532998e-05
5.0 0.775 0.0001296166 4.098837e-05
5.0 0.825 0.0001107912 3.693039e-05
5.0 0.875 0.0001592073 5.034578e-05
5.0 0.925 0.0001053181 3.723556e-05
5.0 0.975 8.767617e-05 3.579365e-05
5.0 1.025 0.0001148033 3.826775e-05
5.0 1.075 6.32847e-05 3.164235e-05
5.0 1.125 2.306564e-05 1.630987e-05
5.0 1.175 3.765625e-05 2.174084e-05
5.0 1.225 3.108225e-05 2.197847e-05
5.0 1.275 2.120365e-05 1.499324e-05
5.0 1.325 4.505074e-05 2.601006e-05
5.0 1.375 2.764859e-05 1.95505e-05
5.0 1.475 3.524308e-05 2.03476e-05
5.0 1.525 3.917037e-05 2.261502e-05
5.0 1.575 2.563156e-05 1.812425e-05
5.0 1.625 1.066397e-05 1.066397e-05
5.0 1.675 1.092862e-05 1.092862e-05
5.0 1.725 1.861269e-05 1.316116e-05
5.0 1.775 2.46826e-05 1.745324e-05
5.0 1.875 9.475408e-06 9.475408e-06
5.0 1.925 4.104297e-05 2.052149e-05
5.0 1.975 4.587372e-05 2.293686e-05
