Measurement E20M3
| Experiment: | e6a CLAS experiment | |
|---|---|---|
| Year: | 2006 | |
| Spokespersons: | K. Sh. Egiyan, K. A. Griffioen and M. Strikman | |
| Reaction: | ed → p n | |
| Polarization: | none | |
| Quantity: | dσ/(dQ2 dPn dΩn) | |
| Q2: | 1.75 — 5.5 GeV2 | |
| Publication: |
K.Sh. Egiyan, G.A. Asryan, N. Gevorgyan, K.A. Griffioen, J.M. Laget, S.E. Kuhn and CLAS Collaboration Experimental Study of Exclusive 2H(e,e'p)n Reaction Mechanisms at High Q2 //
PRL 98, 262502 (2007)
|
|

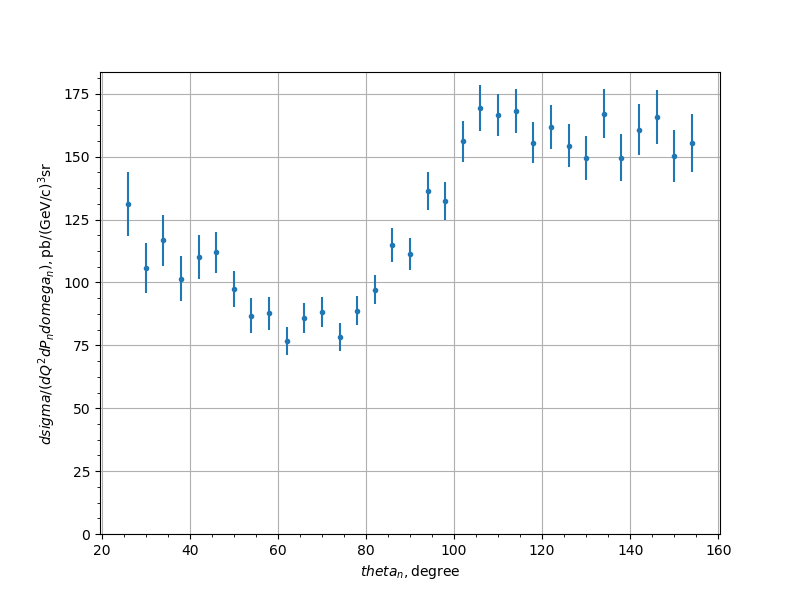

| Q2, [GeV2] | θn, [degree] | dσ/(dQ2 dPn dΩn), [pb/(GeV/c)3 sr] | uncertainty |
|---|---|---|---|
| 2.0 | 26.0 | 131.128 | 12.618 |
| 2.0 | 30.0 | 105.663 | 9.984 |
| 2.0 | 34.0 | 116.785 | 10.127 |
| 2.0 | 38.0 | 101.535 | 8.94 |
| 2.0 | 42.0 | 110.156 | 8.82 |
| 2.0 | 46.0 | 112.101 | 8.133 |
| 2.0 | 50.0 | 97.377 | 7.028 |
| 2.0 | 54.0 | 86.837 | 6.802 |
| 2.0 | 58.0 | 87.838 | 6.565 |
| 2.0 | 62.0 | 76.68 | 5.607 |
| 2.0 | 66.0 | 85.853 | 5.924 |
| 2.0 | 70.0 | 88.195 | 6.029 |
| 2.0 | 74.0 | 78.417 | 5.477 |
| 2.0 | 78.0 | 88.846 | 5.608 |
| 2.0 | 82.0 | 97.197 | 5.63 |
| 2.0 | 86.0 | 114.956 | 6.797 |
| 2.0 | 90.0 | 111.303 | 6.48 |
| 2.0 | 94.0 | 136.484 | 7.479 |
| 2.0 | 98.0 | 132.394 | 7.519 |
| 2.0 | 102.0 | 156.089 | 8.238 |
| 2.0 | 106.0 | 169.246 | 9.086 |
| 2.0 | 110.0 | 166.683 | 8.408 |
| 2.0 | 114.0 | 168.274 | 8.725 |
| 2.0 | 118.0 | 155.591 | 8.223 |
| 2.0 | 122.0 | 161.844 | 8.882 |
| 2.0 | 126.0 | 154.435 | 8.674 |
| 2.0 | 130.0 | 149.538 | 8.812 |
| 2.0 | 134.0 | 167.07 | 9.777 |
| 2.0 | 138.0 | 149.658 | 9.446 |
| 2.0 | 142.0 | 160.681 | 10.142 |
| 2.0 | 146.0 | 165.749 | 10.699 |
| 2.0 | 150.0 | 150.243 | 10.319 |
| 2.0 | 154.0 | 155.528 | 11.466 |
| 3.0 | 26.0 | 29.914 | 2.827 |
| 3.0 | 30.0 | 25.246 | 2.324 |
| 3.0 | 34.0 | 21.298 | 2.04 |
| 3.0 | 38.0 | 24.044 | 2.085 |
| 3.0 | 42.0 | 23.833 | 1.939 |
| 3.0 | 46.0 | 19.15 | 1.654 |
| 3.0 | 50.0 | 21.482 | 1.683 |
| 3.0 | 54.0 | 20.235 | 1.566 |
| 3.0 | 58.0 | 18.3 | 1.479 |
| 3.0 | 62.0 | 17.769 | 1.4 |
| 3.0 | 66.0 | 18.962 | 1.417 |
| 3.0 | 70.0 | 17.568 | 1.317 |
| 3.0 | 74.0 | 17.486 | 1.249 |
| 3.0 | 78.0 | 19.158 | 1.295 |
| 3.0 | 82.0 | 21.15 | 1.395 |
| 3.0 | 86.0 | 22.829 | 1.486 |
| 3.0 | 90.0 | 23.034 | 1.478 |
| 3.0 | 94.0 | 26.457 | 1.641 |
| 3.0 | 98.0 | 30.582 | 1.787 |
| 3.0 | 102.0 | 29.224 | 1.769 |
| 3.0 | 106.0 | 29.421 | 1.807 |
| 3.0 | 110.0 | 32.502 | 1.87 |
| 3.0 | 114.0 | 32.014 | 1.91 |
| 3.0 | 118.0 | 26.14 | 1.724 |
| 3.0 | 122.0 | 30.399 | 1.979 |
| 3.0 | 126.0 | 29.346 | 1.952 |
| 3.0 | 130.0 | 27.67 | 1.942 |
| 3.0 | 134.0 | 26.667 | 1.945 |
| 3.0 | 138.0 | 26.903 | 2.12 |
| 3.0 | 142.0 | 26.421 | 2.187 |
| 3.0 | 146.0 | 30.417 | 2.459 |
| 3.0 | 150.0 | 27.354 | 2.529 |
| 3.0 | 154.0 | 28.314 | 2.712 |
| 4.0 | 26.0 | 4.387 | 0.829 |
| 4.0 | 30.0 | 5.222 | 0.826 |
| 4.0 | 34.0 | 6.102 | 0.854 |
| 4.0 | 38.0 | 4.717 | 0.703 |
| 4.0 | 42.0 | 5.499 | 0.728 |
| 4.0 | 46.0 | 4.934 | 0.659 |
| 4.0 | 50.0 | 3.623 | 0.559 |
| 4.0 | 54.0 | 4.431 | 0.587 |
| 4.0 | 58.0 | 3.293 | 0.502 |
| 4.0 | 62.0 | 4.056 | 0.533 |
| 4.0 | 66.0 | 4.346 | 0.548 |
| 4.0 | 70.0 | 3.49 | 0.471 |
| 4.0 | 74.0 | 3.796 | 0.467 |
| 4.0 | 78.0 | 3.608 | 0.447 |
| 4.0 | 82.0 | 4.938 | 0.532 |
| 4.0 | 86.0 | 4.563 | 0.534 |
| 4.0 | 90.0 | 5.433 | 0.596 |
| 4.0 | 94.0 | 5.061 | 0.596 |
| 4.0 | 98.0 | 5.608 | 0.652 |
| 4.0 | 102.0 | 5.553 | 0.664 |
| 4.0 | 106.0 | 6.965 | 0.779 |
| 4.0 | 110.0 | 5.712 | 0.693 |
| 4.0 | 114.0 | 6.512 | 0.784 |
| 4.0 | 118.0 | 6.68 | 0.816 |
| 4.0 | 122.0 | 7.116 | 0.863 |
| 4.0 | 126.0 | 8.355 | 0.999 |
| 4.0 | 130.0 | 7.864 | 0.991 |
| 4.0 | 134.0 | 6.332 | 0.944 |
| 4.0 | 138.0 | 6.456 | 0.962 |
| 4.0 | 142.0 | 4.897 | 0.866 |
| 4.0 | 146.0 | 6.035 | 0.992 |
| 4.0 | 150.0 | 5.538 | 1.028 |
| 4.0 | 154.0 | 4.515 | 0.985 |
| 5.0 | 26.0 | 1.419 | 0.394 |
| 5.0 | 30.0 | 2.051 | 0.448 |
| 5.0 | 34.0 | 1.55 | 0.376 |
| 5.0 | 38.0 | 0.622 | 0.22 |
| 5.0 | 42.0 | 1.454 | 0.325 |
| 5.0 | 46.0 | 1.366 | 0.313 |
| 5.0 | 50.0 | 1.023 | 0.256 |
| 5.0 | 54.0 | 1.393 | 0.297 |
| 5.0 | 58.0 | 1.114 | 0.263 |
| 5.0 | 62.0 | 0.815 | 0.218 |
| 5.0 | 66.0 | 1.022 | 0.241 |
| 5.0 | 70.0 | 1.303 | 0.261 |
| 5.0 | 74.0 | 0.934 | 0.22 |
| 5.0 | 78.0 | 1.198 | 0.244 |
| 5.0 | 82.0 | 0.905 | 0.22 |
| 5.0 | 86.0 | 0.809 | 0.209 |
| 5.0 | 90.0 | 0.989 | 0.24 |
| 5.0 | 94.0 | 1.929 | 0.358 |
| 5.0 | 98.0 | 1.624 | 0.346 |
| 5.0 | 102.0 | 1.368 | 0.342 |
| 5.0 | 106.0 | 1.924 | 0.401 |
| 5.0 | 110.0 | 1.44 | 0.36 |
| 5.0 | 114.0 | 1.153 | 0.333 |
| 5.0 | 118.0 | 1.766 | 0.416 |
| 5.0 | 122.0 | 1.499 | 0.401 |
| 5.0 | 126.0 | 1.959 | 0.475 |
| 5.0 | 130.0 | 1.385 | 0.37 |
| 5.0 | 134.0 | 1.895 | 0.46 |
| 5.0 | 138.0 | 1.286 | 0.407 |
| 5.0 | 142.0 | 0.631 | 0.258 |
| 5.0 | 146.0 | 0.73 | 0.298 |
| 5.0 | 150.0 | 0.89 | 0.363 |
| 5.0 | 154.0 | 1.657 | 0.552 |
Measurement comment:
